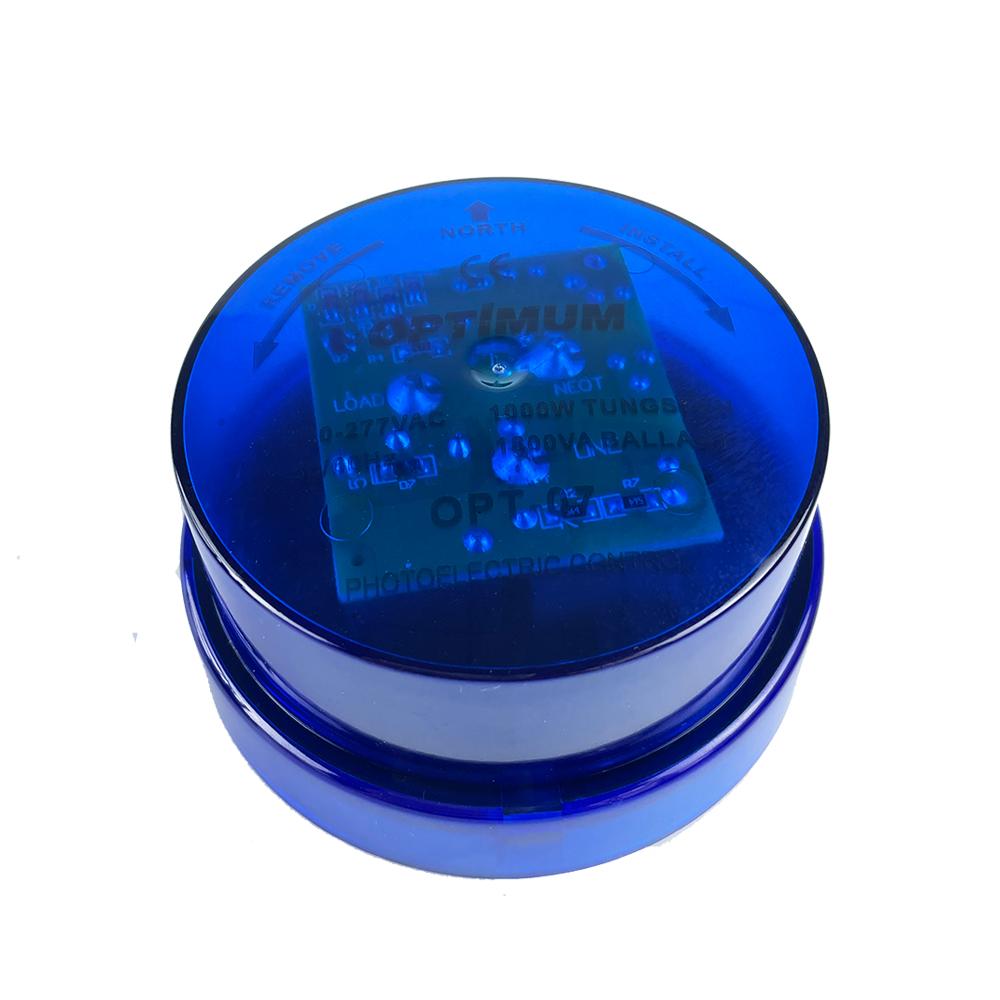

Dusk to dawn Automatic light control switch IP66 fotocelda for outdoor light

  • Dusk to dawn Automatic light control switch IP66 fotocelda for outdoor light
  • Dusk to dawn Automatic light control switch IP66 fotocelda for outdoor light
  • Dusk to dawn Automatic light control switch IP66 fotocelda for outdoor light
  • Dusk to dawn Automatic light control switch IP66 fotocelda for outdoor light
Model No.︰OPT-07
Brand Name︰OPTIMUM
Country of Origin︰China
Unit Price︰US $ 1.8 / pc
Minimum Order︰100 pc
Share on:

 Total 20 Related Items
12345Next

Product Description

Products Description

The photocontroller can turn on and off light automatically according to ambient light; Our product is widely used on
street lighting, garden lighting, area lighting, other outdoor lighting etc.
This product is designed with electronic circuits with sensor of photodiode and a surge arrester (MOV) is provided. Its
quicker response with time delay of 3-10 seconds offers easy to test feature. This model photocontrol can provide a
wide voltage range for customer appliations under almost power supplies.

Details Images

Product Specification

Model

OPT-07

Standard

ANSI C136.10 & UL 773

Control Type

Electronic

Voltage Range

85V-305V

Frequency

50-60HZ

Rated Load

1000W/1800VA

Opreating Temperature

-40℃ -70℃

Turn On light level

10-16 lux on, <30 lux off

Time delay

3-10 seconds

Surge Protection

190J

Switch

>5000 ON/OFF operations at Rated Load

Housing

Anti-UV PC

Fail Mode

OFF(optional:ON)

Related Products

PHOTOCELL OPT-06

* Automatically turns light on at dusk and off at dawn

* Easy to install-- Just need to plug in a base, twist lock the photocontrol

* Surge Protection help to protect the lamp from lightening

PHOTOCELL OPT-07

* Automatically turns light on at dusk and off at dawn* Easy to install-- Just need to plug in a base, twist lock the photocontrol
* Surge Protection help to protect the lamp from lightening

PHOTOCELL BASE WITH BRACKET

* Easy Installation

* sealing sealant at the bottom, better waterproof

* Equiped with Photocell can meet IP66/IP67

* Good quality, competitive price

Our Advantages

Company Profile

FAQ

Q1: Are you a Factory?
Yes. We are the manufacture Factory, and our factory have many years of production experiences for electrical products .
Q2: Does your product can printed our LOGO?
Yes, we can print the logo as per your requests .
Q3. Can I have a sample to check the quality?
Yes, we can provide samples for your testing.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5. How long you can deliver the goods?
A: Usually we need 3-5 days for sample order, mass production time needs 5-10 days.

Payment Terms︰T/T
