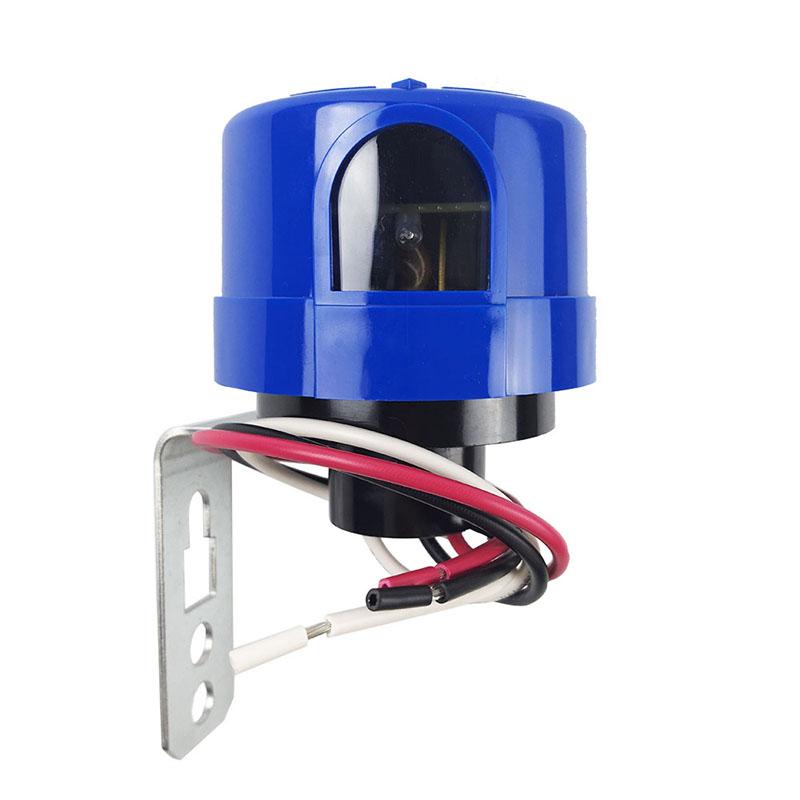

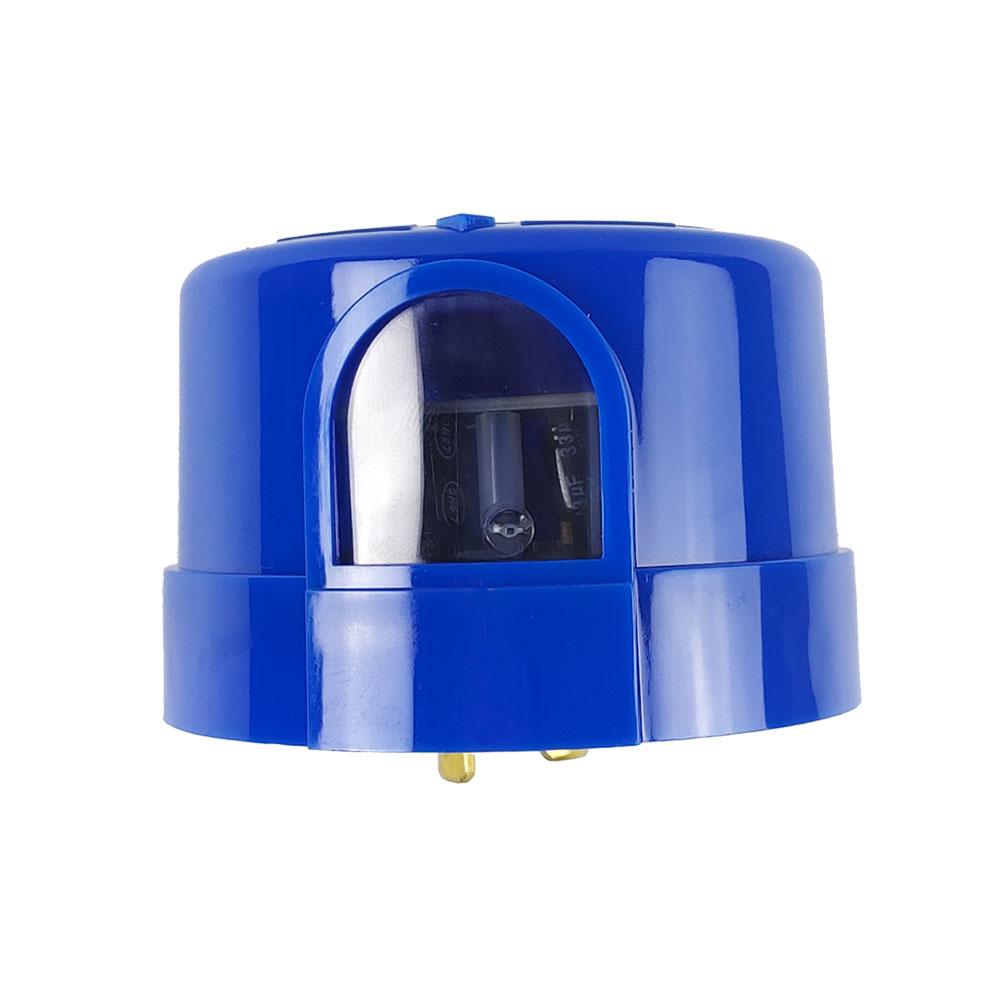

The product is suitable for automatic switch control of street lamps, courtyard lamps, corridor lamp, outdoor lighting etc.
The photocontrol is designed with 120-277V wide voltage application under almost power suppliers, with lighting surge protection circuit, can protect the lamps from lightning damage.

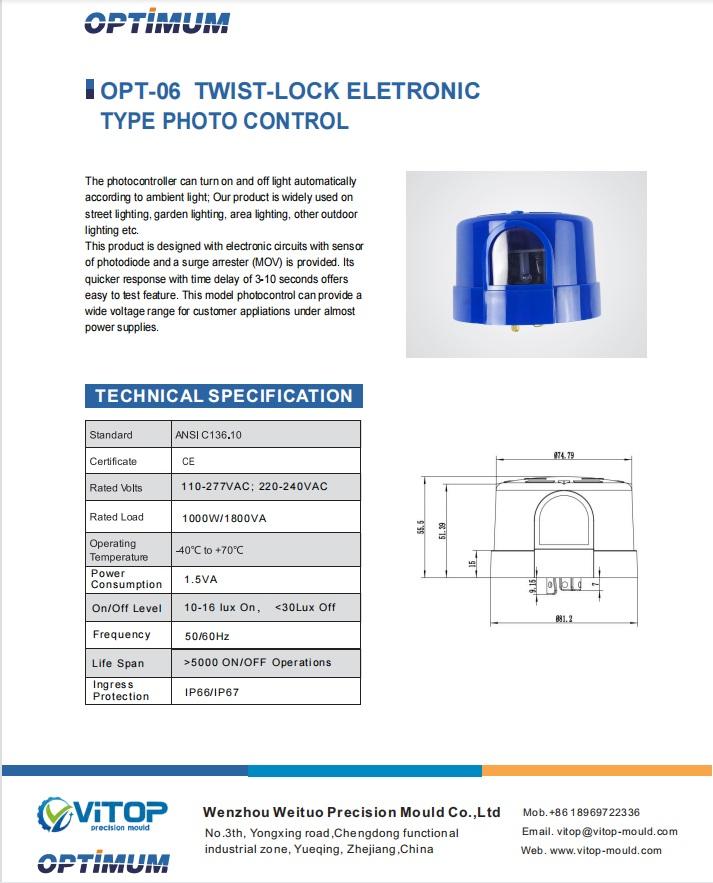

SPECIFICATION:
| Model |
OPT-06 |
| Controller type |
electronic |
| Reted Voltage |
120-277VAC |
| Rated Frequency |
50/60Hz |
| Rated Loading |
1000W Tungsten, 1800W Ballast |
| Power Consumption |
1.5VA |
| Ambient Temperature |
-40℃ -70℃ |
| On-Off Levels |
10-16 Lx On(Dusk); <30 Lx Off(Dawn) |
| Related Humidity |
96% |
| Fail Mode |
on or off |
| Ingress protection |
IP66 or IP67 |
| Operation switch |
>5000 according ANSI C 136.10 |
| Cover material |
Anti-UV PC |
| Base material |
PBT |
| Certificate |
CE |
INSTALLATION:
Disconnect power, wire the color code receptacle according to the diagram below.
Push the photocontrol on and twist it clockwise to lock it into the receptacle
Install the photocontrol with the photocell facing the north direction as indicated on the top of the photocontrol.
