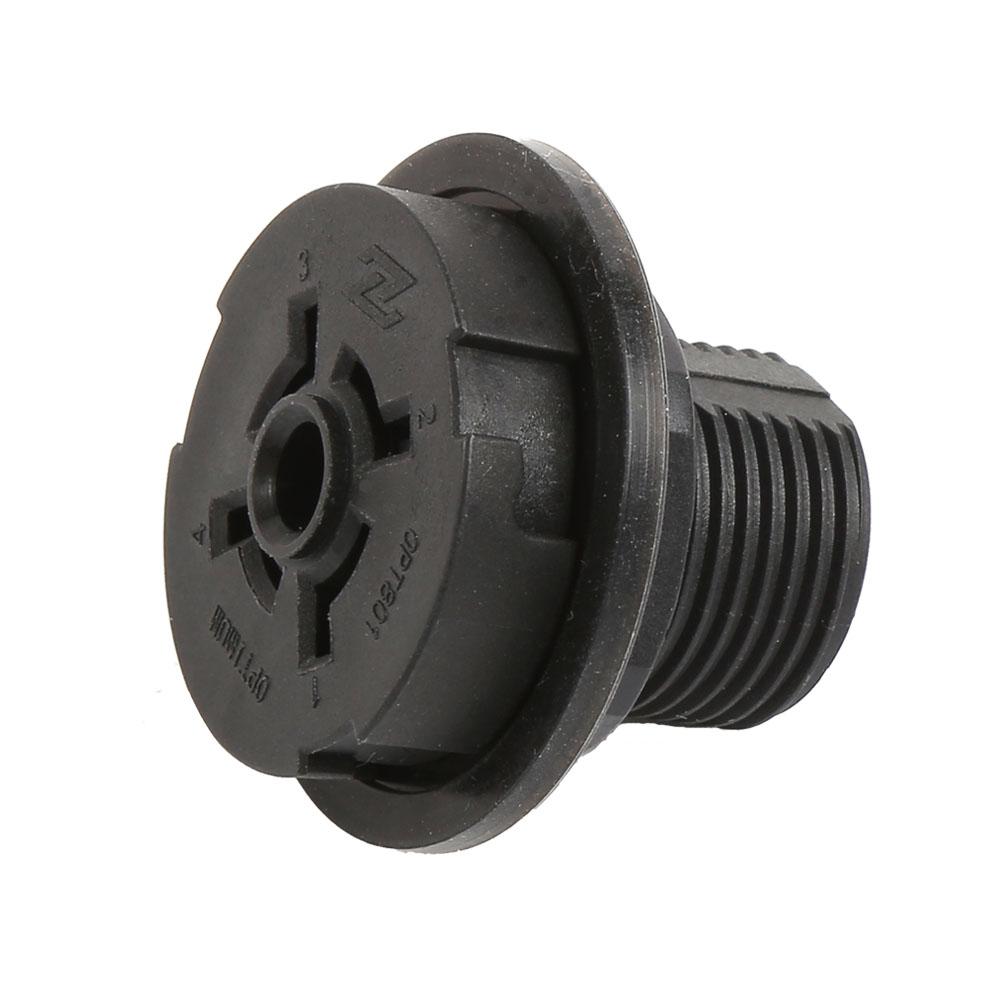

Hot sale Zhaga receptacle connector

  • Hot sale Zhaga receptacle connector
  • Hot sale Zhaga receptacle connector
  • Hot sale Zhaga receptacle connector
  • Hot sale Zhaga receptacle connector
Model No.︰OPT801
Brand Name︰OPTIMUM
Country of Origin︰China
Unit Price︰US $ 1 / pc
Minimum Order︰100 pc
Share on:

 Total 20 Related Items
Prev678910Next

Product Description

Products Description

Zhaga controller is an easily installable wireless device for remote control of LED luminaires. Device is equipped with zhaga book 18 compliant connector and controls the luminaire through DALI or DALI-2 interface. Modern and small design makes it excellent fit to various street lighting modules.





* DALI-2 interface to add more addresses on a single DALI network
* Luminaire intensity control
* Customizable dimming profiles
* Configurable ON/OFF switching
* Multicast support
* Simple push-and-twist lock installation

Product Pictures

Product Specification

Model

OPT-801

Standard

Zhaga book 18

Contacts Rating

1.5V, 30A

Dielectric withstand

10kv to mounting surface

4 Pin Contacts

Pin 1: 24VDC     Pin 2: DALI-

Pin 3:  DALI+      Pin 4: General I/O

IP Rating

IP66

Housing Material

High Temperature Resistance Polybutylene Terephthalate

Acessory

Silicon Gasket, Mounting Nut

Recommend Products

ZHAGA Receptacle with sealing cap

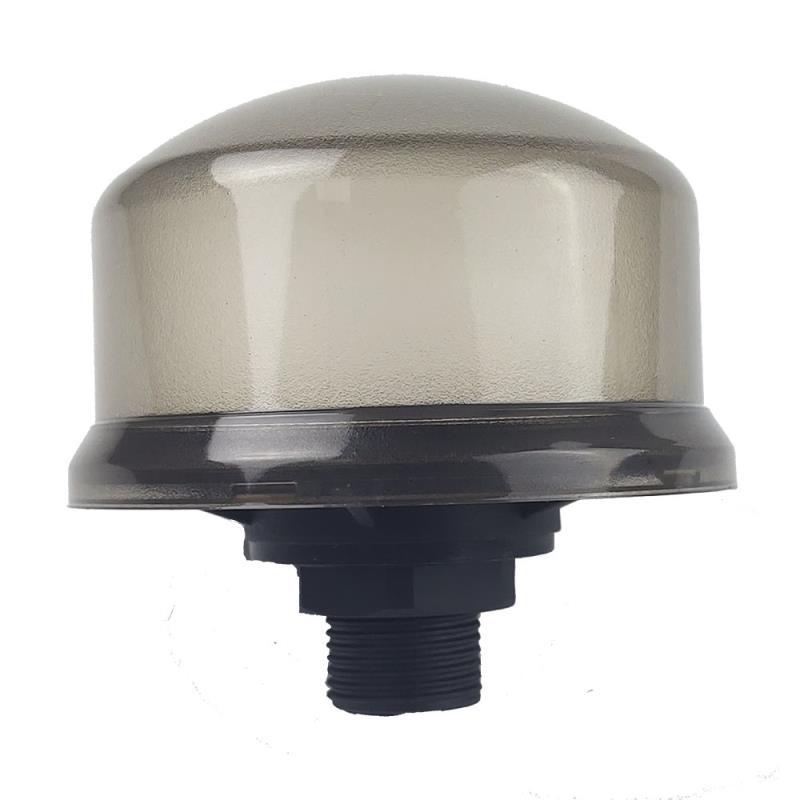

ZHAGA Controller Enclosure
