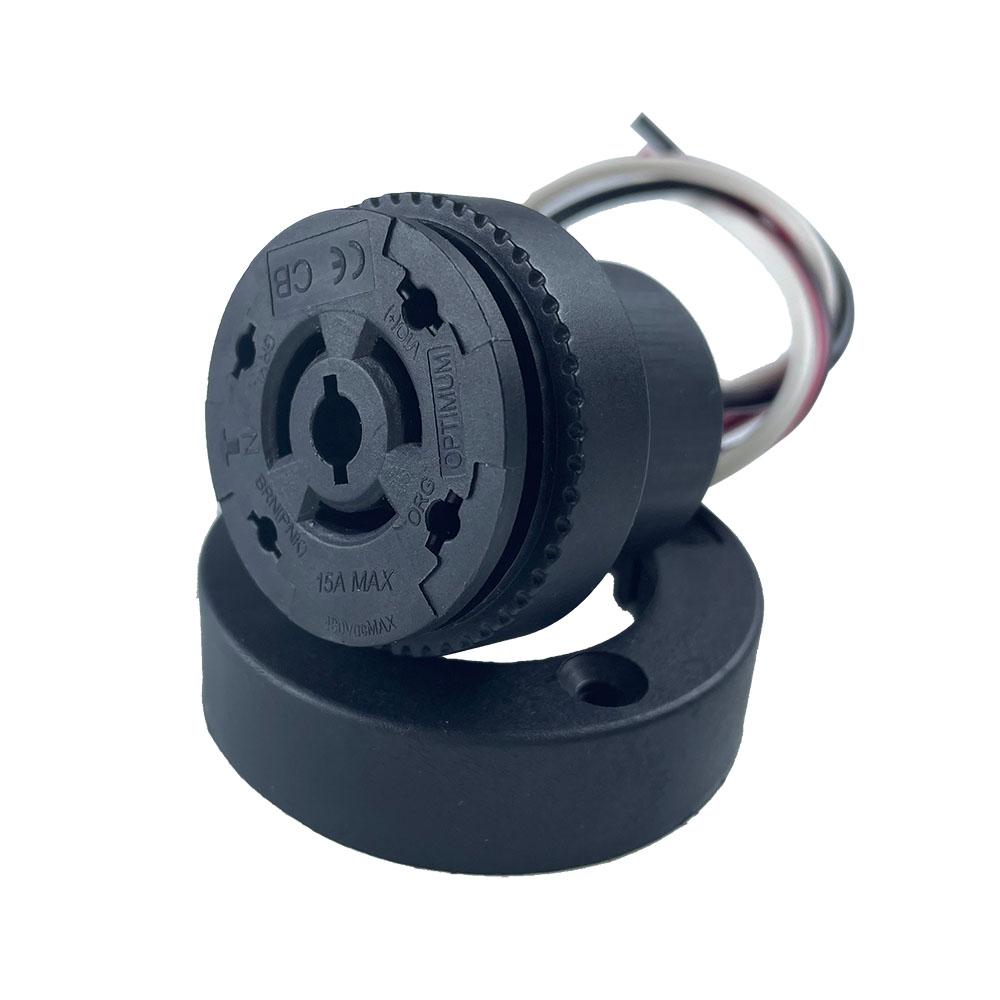

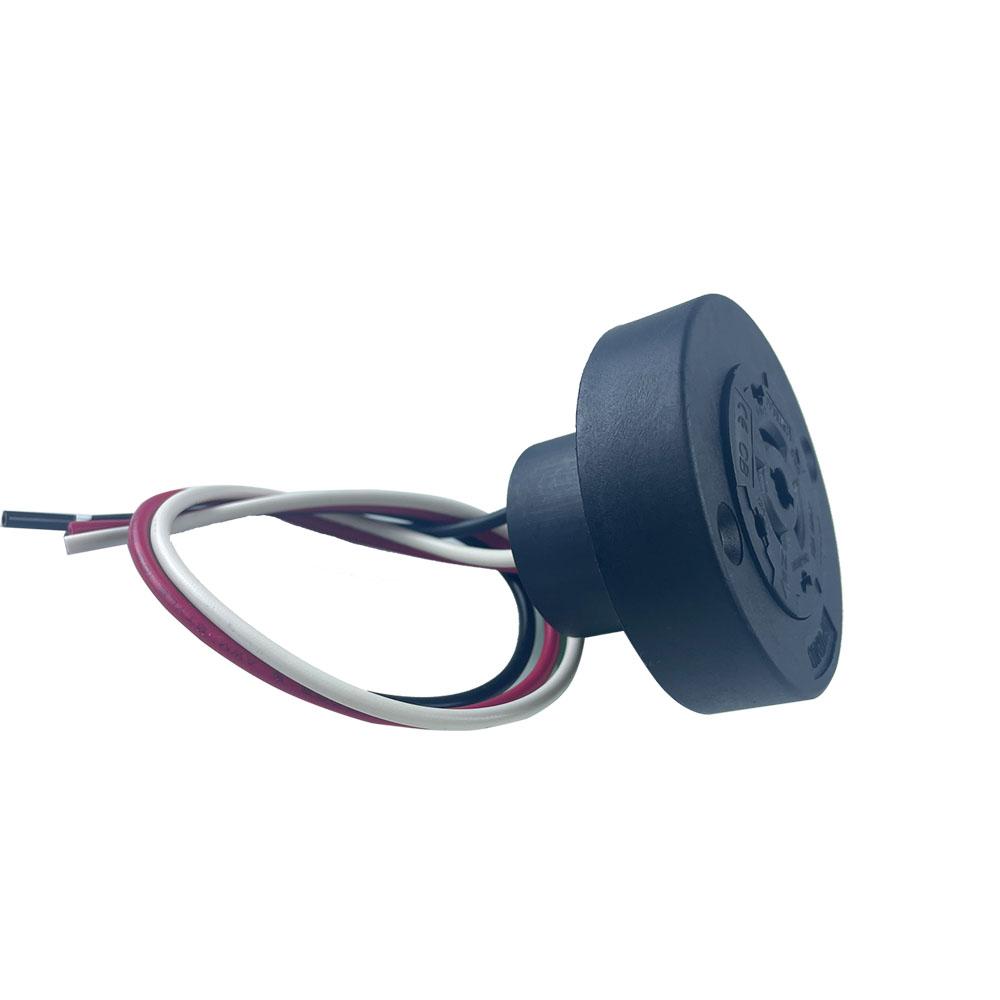

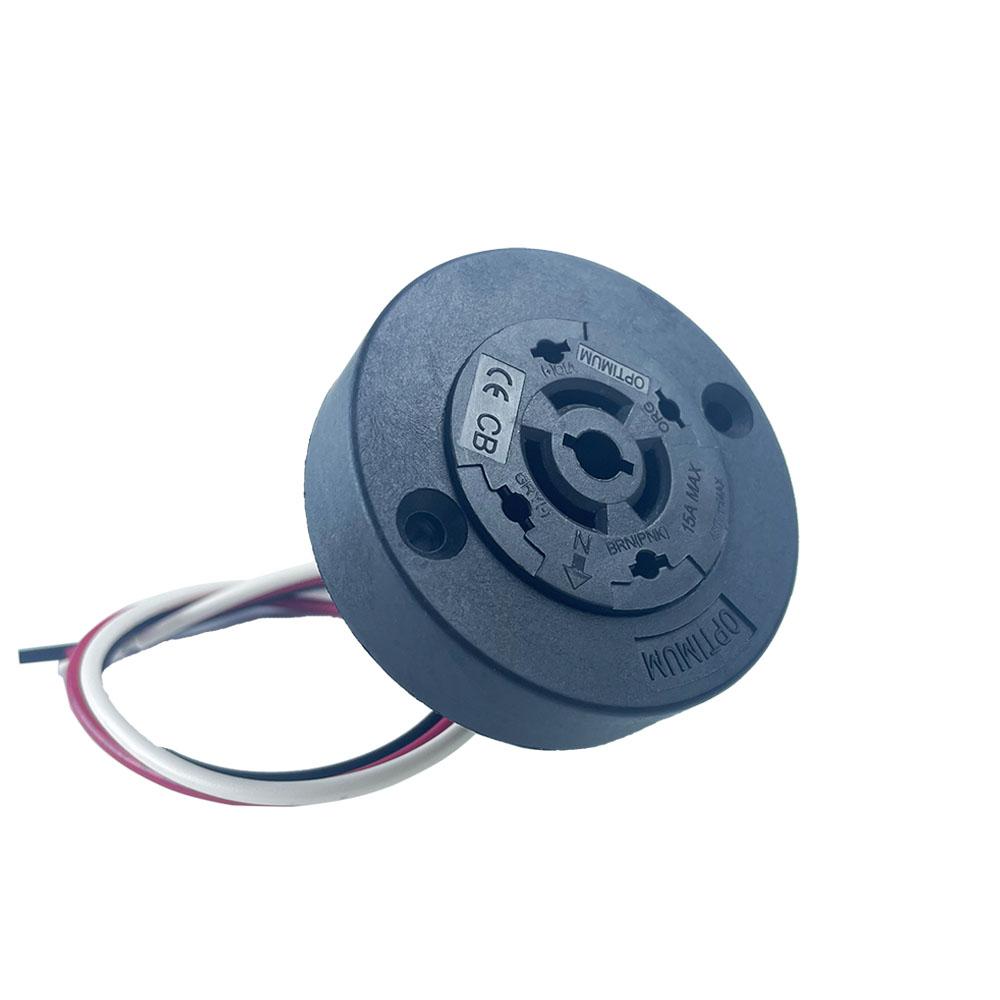

Good price Rotating photocell base Nema 3pin Photo Control Receptacle

  • Good price Rotating photocell base Nema 3pin  Photo Control Receptacle
  • Good price Rotating photocell base Nema 3pin  Photo Control Receptacle
  • Good price Rotating photocell base Nema 3pin  Photo Control Receptacle
Model No.︰OPT-301R
Brand Name︰OPTIMUM
Country of Origin︰China
Unit Price︰-
Minimum Order︰100 pc
Share on:

 Total 20 Related Items
Prev12345Next

Product Description

Products Description

Photoelectric control NEMA Socket 3PIN
Conforms to ANSI/NEMA standard, Long lasting

* Follows industry standards
* high temperature resistant housing and effective sealing.
* Maximum Electrical Ratings: 480V, 15A
* Robust twist lock contacts for a reliable power interconnect
* No electrician required, simple installation

Product Pictures

Specification

Model

OPT301R

Standard

ANSI C136.10 & UL773

Cable

UL1015 14AWG/16AWG

Rated Voltage

480V (105-480V)

Frequency

50-60HZ

Rated Load

15A/1000W/1800VA

Operating Temperature

-40℃ -70℃

Related Humidity

99%

Insulation

 300V/60HZ/1min

Housing

PBT

Accessory

Silicon Gasket

Related Products

NEMA Socket 3 pin with bracket

* Easy Installation * sealing sealant at the bottom, better waterproof

* Equiped with Photocell can meet IP66/IP67

* Good quality, competitive price

NEMA Socket 3 pin with waterproof cover bracket

* Easy Installation

* Waterproof cover * Good quality, competitive price

Installation Instructions

NEMA socket 3 pin installation

* The electrical connection of the light control unit should be performed with the power supply disconnected.
* When installing the spin-lock optical controller, simply insert the large pin into the large jack of the spinlock light control
block and rotate it clockwise about 15 degrees to stop. Remove, the first counter-clockwise rotation of about 15 degrees to the
bit, pull up to remove.
* The outdoor lighting with a lock light control seat, if not to use the light control mode, you can use spin-locking short-circuit cap instead of light control, then the lamp can be controlled by ordinary switch; if temporarily use lamps, you can use spinlock Open cap instead.
* outdoor light with a wired optical controller, if the temporary use of light-controlled way on duty, you can use the appropriate way to cover their photographic eyes, this time by the general lighting control switch.
